Jim Buoy

Molded-in color	White	White
Overall height	61-1/2"	71-1/2"
Can diameter	9"	9"
Base Diameter
Height above waterline (foam line)	37"	44"
Weight	50 lbs	58 lbs
Galv. steel eye-bolt	1/2"	1/2"
Chain req'd to float upright	Yes	Yes

All Models:	Accessories:
Shell: High density polyethylene Internal foam: 2-3 lb density polyurethane foamed to waterline (foam filled upon request) Internal Ballast: Reinforced concrete Labels: 200 stock labels included in buoy price - no extra charge. Special labels - call for quotation	Reflective tape: Various colors (orange, red, green, silver) and widths available upon request #9000 Jim-Buoy lights available for all models Pick-up eye Radar reflection
#410

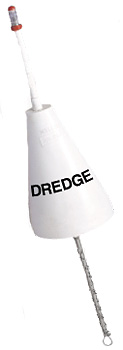

Dredge Buoy
	# 506 Dredge Buoy Complies with U.S.C.G. Reg. 88.15. 3 mile visibility with bright, white light. One set (3) Alkaline D-cell batteries warranted to last 1 year of continuous use without change. Easy part assembly. Size: Ballast 22", buoy 18" diameter x 24" ht., lightholder 22" (lightholder priced separately).
